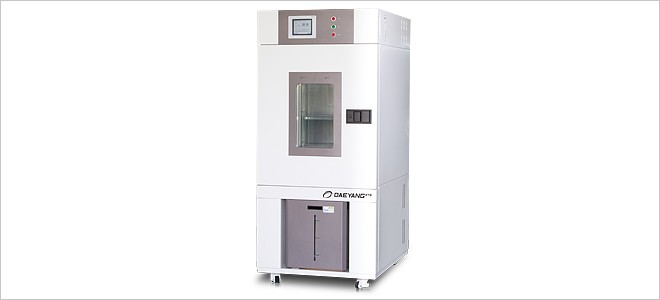

Temperature & Humidity(Silm) Chamber

Feature

Programmable Controller with 5.7inch touch screen Interface
Constant Temperature and Humidity Test from -40°C to 150°C and Humidity 25~98%
Temperature, Humidity and other parameters can be recorded using a Recorder
120 Patterns / 1200 segments of programming / Real-Time monitoring and date acquisition
Free PC-software / RS-232 Port as standard offer
RS-485 Interface port offers connection of 9 chambers to One pc. (Optional)
Compliance with the IEC amd MIL standard for Reliability
Convenience & Safety

Efficient operation and maintenance with easy-to-use Temperature & humidity controls
Anti-fog, heated glass on observation windows can see inside even in low Temperature
LED lighting lamp included / Built-in Reservoir cassette type water supply system
Checking of the water level and the amount of water remaining in the tank
Access port for external probes or wires
Additional 50mm or bigger diameter cable port can be ordered (Optional)
Rounded inner chamber corners for easy cleaning and better airflowing
Vice type door locking system with silicon packing to ensure a perfect seal
Over-temperature limit / Electrical Leakage Breaker
Motor / Compressor over current protector
Compressor High/Low Pressure Limiter

Option Item
- Recorder : 2/6 Channel Chart Recorder - Digital or Analog
- USB Memory Storage
- Low Hunmidity Range : Under 5% (5%~20%)
- Low Temperature Range : Under -40 (-40°C~-70°C)
- Additional 50mm or bigger diameter cable port
- TFT-LCD(640 X 480) Controller / SD Memory Card / Digital Recording
Specification
Model: TH-180S, Working Temperature Range: - 20°C to 150°C
Chamber volume(L): 180 Litre
Dimensions: Interior(WXDXH, mm): 600X500X600, Exterior(WXDXH, mm): 850X988X1688
Temperature Range: -40°C to 150°C, Stability: ±0.1°C at Full Range, Uniformity: ±0.5°C at 40°C
Heating Time: From 25°C to 100°C Within 30Min, Cooling Time: From 25°C to -20°C Within 50Min. / From 25°C to -40°C Within 100Min.
Humidity Range: 25~95% RH at 20~90°C, Stability: ± 0.5% at 60 % / 40°C, Uniformity: ± 3.0% at 60 % / 40°C
Controller Display: Programmable Controller with 5.7inch touch screen Interface
PC Interface: RS-232C Interface with Free PC Software, Programming: 120 Patterns / 1200 Segments
Shelves Number of standard / Max: 2 / 8, : Load per shelf: 25 Kg
Material Internal: Stainless steel #304, Shelf: Stainless steel #304, External: Double painted & baked steel
Ambient Working Condition Temperature: 18°C to 30°C (Recommend Temp. : 20°C), Humidity: 30~85%, Altitude: Less than 2000m
Safety: Electrical Leakage Breaker, Over Temp. Cut-off, Low Water Level
Electric Requirements: 110VAC 60Hz or 220VAC 50/60Hz
