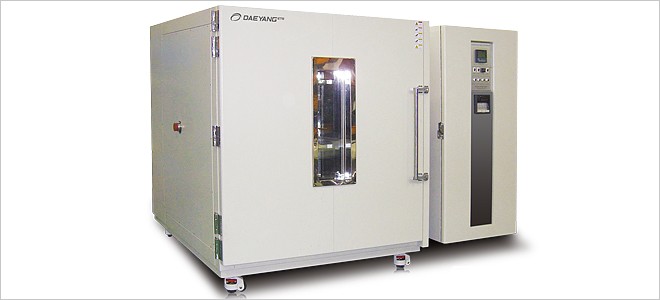

Testing of a wide range of Large-size products, computers, monitors, Communication equipments, Refrigerators, Automobiles, etc.
Operators work on products inside the chamber with connection to power supply and other control Lines from outside.
Eletronic expansion valve enables operation in ideal condensing cycle with variable weight and heat loads, and prevents over-heating and malfunctioning.
Programmable Controller with 5.7inch touch screen Interface
Choice of Air-cooled type and Water-cooled type condensors
Real-Time monitoring and date acquisition
Free PC-software
RS-232 Port as standard offer
RS-485 Interface port offers connection of 9 chambers to One pc. (Optional)
Relation Images
Efficient operation and maintenance with easy-to-use Temperature & humidity controls
Anti-fog, heated glass on observation windows can see inside even in low Temperatures
Direct Water supplying system
Auto Pressure Regulator
Access port for external probes or wires
Vice type door locking system with silicon packing to ensure a perfect seal
Over-temperature limit / Electrical Leakage Breaker
Motor / Compressor over current protector
Compressor High/Low Pressure Limiter
Compliance with the IEC amd MIL standard for Reliability
Option Item
- Made to Order to requirments Infrared Rays Testing system
- Recorder : 2/6 Channel Chart Recorder-Digital or Analog
- USB Memory Storage
- Low Hunmidity Range : Under 5%(5%~20%)
- Low Temperature Range : Under -40( -40°C~ -70°C)
- Additional 50mm or bigger diameter cable port
- TFT-LCD(640 X 480) Controller / SD Memory Card / Digital Recording
Specification
